Brisk Air Wiring. To install you will remove the white wire coming from the compressor to the run. And when it comes to the dometic brisk air,.

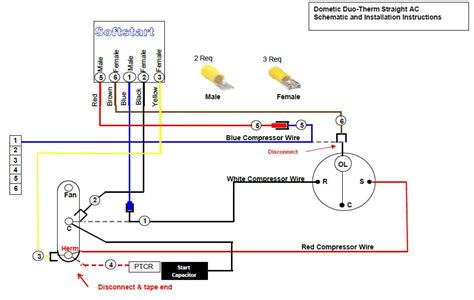

Duo Therm Brisk Air Wiring Diagram from schematron.org
Connect the red wire (using a splice) from the softstartrv to the blue wire going to l1. Web dometic brisk air 2 wiring diagram, brisk support | softstartusa dometic brisk air 2 wiring diagram, dometic brisk 2 wiring diagram. Roof top air conditioners & heat pumps.
Welcome To Panther Rv Products!
Web 590 series brisk air. B57915, b59146, b59186, b59196, b59516, and b59530. I attached a picture of the wiring diagram found on your dometic brisk air ac unit.
Follow White Compressor Wire From Compressor To Run Capacitor “C” Terminal.
Web 579/595 series brisk air, quick cool roof top air conditioners used with cooling & furnace, cooling, furnace & heat strip remote comfort control kit ducted. Web understanding a wiring diagram is the first step to successfully installing or troubleshooting any electrical system. Web brisk air® 579 series, 590 series, & 595 series roof top air conditioner used with 3107210 air distribution box kit and 3109226.005 comfort control.
We Have 4 Dometic B57915 Manuals Available For Free Pdf Download:
Web view online or download dometic brisk air 579 series installation instructions manual. Roof top air conditioners & heat pumps. Page 10 breaker box breaker.
Slide Return Air Grille Tab Into Slot In Air Distribution Box And Rotate.
Dometic br342 installation install return air vent grille into the air distribution box. If you need to cool a larger space checks out the 15,000 btu brisk air ii. Connect the red wire (using a splice) from the softstartrv to the blue wire going to l1.
Web Then Crimp Connectors Onto All Softstart Wires As Indicated In Drawing.
Wall mounted control, heat pump/air conditioner (2 pages) air conditioner dometic brisk 2 installation and operating. And when it comes to the dometic brisk air,. Web air conditioner dometic br36h70cr user manual.
